Umshini Ohlanganisiwe Weziteshi Eziyisithupha Wevaluvu Yevemvane

Isicelo

Lo mshini usetshenziswa kakhulu ekucubunguleni i-Valve, umzimba wephampu, izingxenye ze-Auto, izingxenye zemishini yokwakha njll.Ungasebenzela izinqubo eziningi, isibonelo, Ubuso bokugcina, Umbuthano wangaphandle, Unqenqema lwangaphambili, Imbobo engaphakathi, I-Grooving, Intambo yesikulufu, i-Bore. -hole kanye ne-Sphere.Isebenze ne-Huadian CNC Controller (noma i-Siemens, i-Guangzhou CNC Controller), Ingakwazi ukubona ukuzenzekelayo, ukunemba okuphezulu, ukuhlukahluka okuningi nokukhiqizwa okukhulu.

Izici eziyinhloko

1).Imishini yethu yonke idla ngesilawuli se-Huadian CNC (noma i-Siemens, i-Fanuc), ingafinyelela ukuxhumana kwe-Biaxial bese iqedela ukucubungula i-Bore-hole, i-Screw thread kanye ne-Sphere. I-CNC Controller yayo inokuhambisana okuhle, umsebenzi onamandla nokusebenza okulula.

2).Umhlahlandlela wetafula Lokushelela kokuphakelayo usebenzisa insimbi empunga yekhwalithi ephezulu, ukuphonsa okungalungile, ukuthambisa kanye nokwelashwa kokuguga izikhathi ezintathu. Susa ngokuphelele ingcindezi yangaphakathi eyinsalela, Ingaphezulu lendlela yomhlahlandlela isebenzisa ukucishwa komsindo omkhulu futhi ukuqina kufinyelela ku-HRC55. Ngokusebenzisa ukunemba okuphezulu komhlahlandlela wokugaya ukucubungula, ukuqinisekisa ukunemba, ukuqina, ukuzinza.

3) .Ingxenye yokudlulisela isebenzisa isikulufu esinembayo sebhola kanye nokufakwa ukuze kuqedwe igebe, ukuze kuqinisekiswe ukuthi ukushayela komshini kuzinzile.

4) .Ikhanda lamandla lifakwe ukuguqulwa kwejubane lezinyathelo ezintathu nge-motor enamandla, ifinyelela isivinini esiphansi kodwa i-torque ephezulu, ingamelana nomthwalo osindayo wokusika, ithuthukise ukusebenza kahle kokucubungula.

5) Izinto zokusebenza zamukela i-Hydraulic pressure-automatic clamping, ukuze kuthuthukiswe ukusebenza kahle nokunciphisa umfutho wabasebenzi.
6) Umshini usebenzisa i-Centralized Lubrication, ukuqinisekisa ukuthi ukugcotshwa okugcwele kwezingxenye ezihambayo ngayinye bese kuthuthukisa impilo yesevisi yamathuluzi omshini.

Isakhiwo esiyinhloko

Umshini wethu ikakhulukazi wakhiwe umzimba, ikhanda lamandla, itafula le-CNC feed sliding, i-CNC cross-feed cutter, imishini ye-Hydraulic pressure, futhi ifakwe ikhabethe likagesi elizimele, isiteshi samanzi, idivayisi yokugcoba ephakathi nendawo, idivayisi yokupholisa i-chip ezenzakalelayo, kanye nedivayisi yokuvikela ephezulu.

1) Umzimba wamukela umzimba wokulingisa odidiyelwe onekhwalithi ephezulu, ukuphuza udoti okwenziwa ngesandla kanye nokwelashwa kokuguga izikhathi ezintathu. Ingaphezulu lendlela yomhlahlandlela iphathwa ngokucishwa komsindo omkhulu, isakhiwo sinengqondo, ukuqinisekisa ukuqina, ukunemba nokuzinza komshini.
2) Incazelo yendawo yokusebenza ngayinye nezithombe ezinemininingwane

(1)Isikhungo sokusebenza 1: Ikhanda lamandla, indilinga yangaphandle ejikayo, ubuso bokuphela kokugaya.

Umzimba wekhanda lamandla wamukela ukusakaza okuhle kakhulu, okokusebenza okuphothayo okungu-20GrMnTAi, okunobumba, ukufudumeza, ukungcwatshwa nokucisha, ukunemba okuphezulu kokugaya ngaphandle nangaphakathi. I-bearing yamukela uchungechunge lwe-NN30 olunemba eliphezulu olunemigqa eyi-cylindrical roller bearing ukuze kuqinisekiswe ukuqina nokunemba kwe intambo yokuphotha.

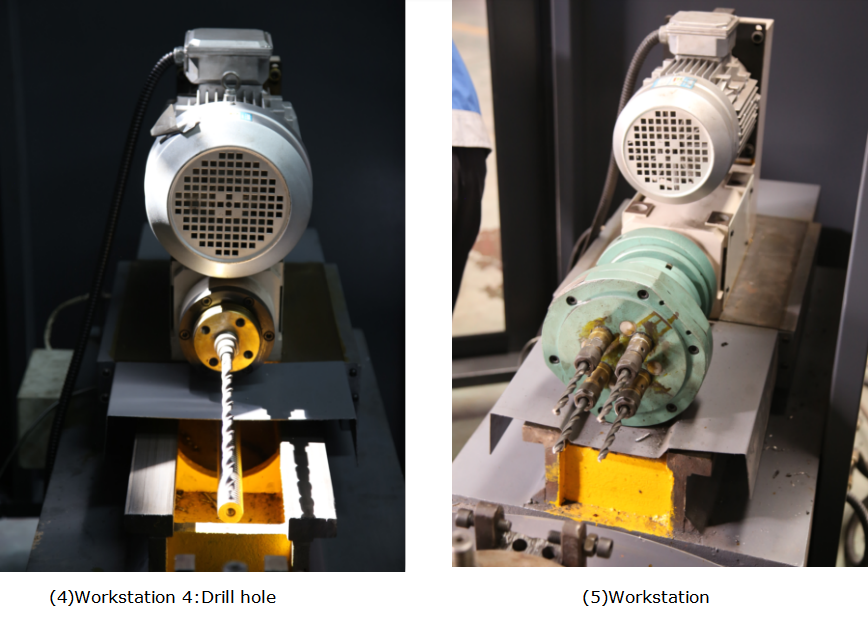

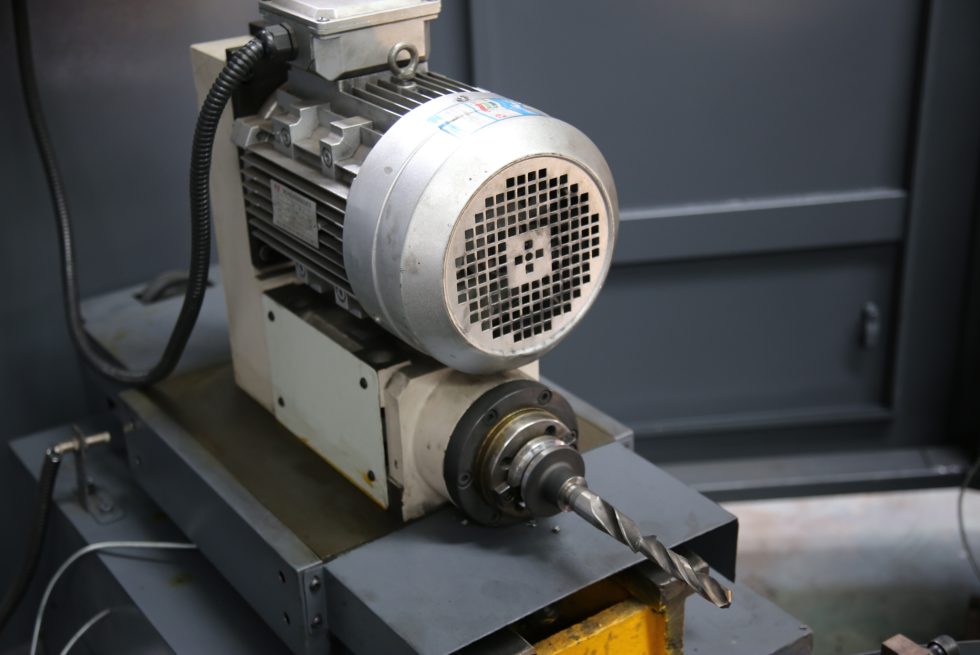

(2)Indawo yokusebenzela 2:Bamba ikhanda kanye nembobo yokubhoboza

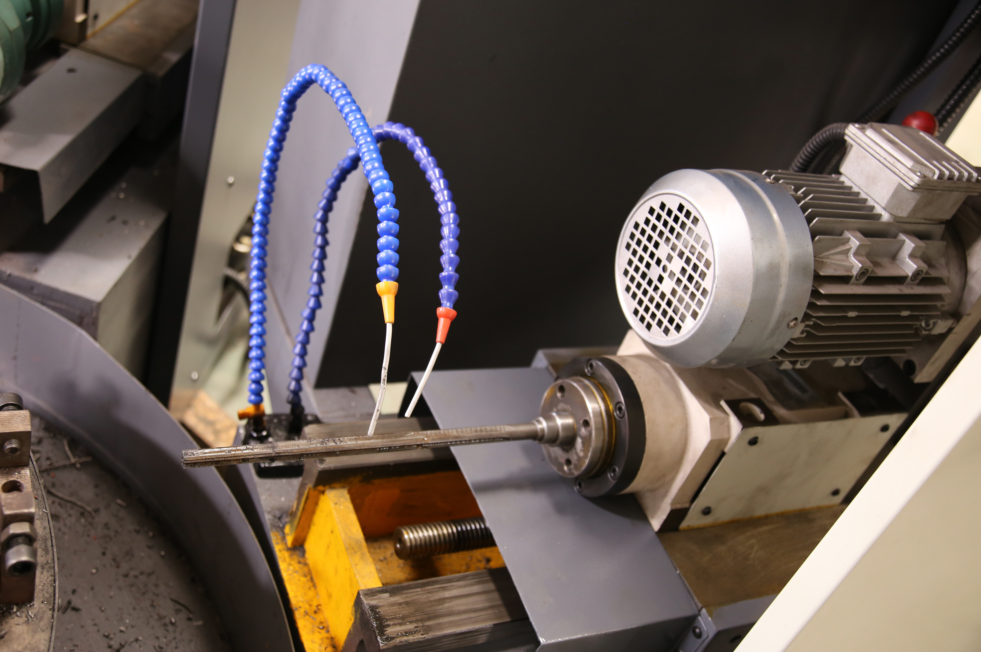

(3)Indawo yokusebenzela 3: Imbobo ebhokayo

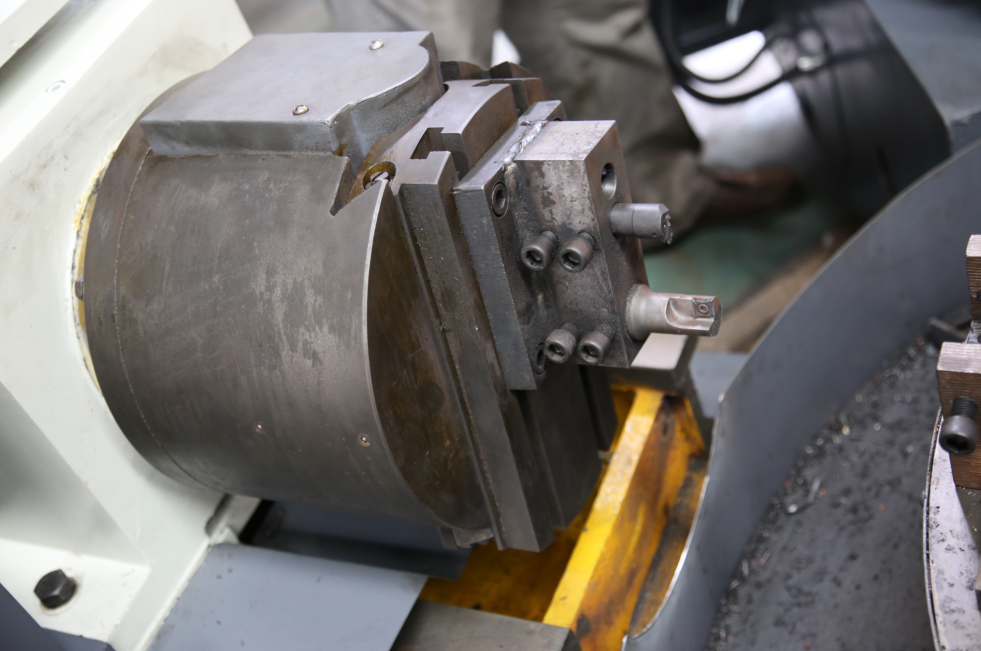

(6) Isikhungo sokusebenzela 6:Isiteshi sokuphakelayo

3)Ithebula Lokusebenza

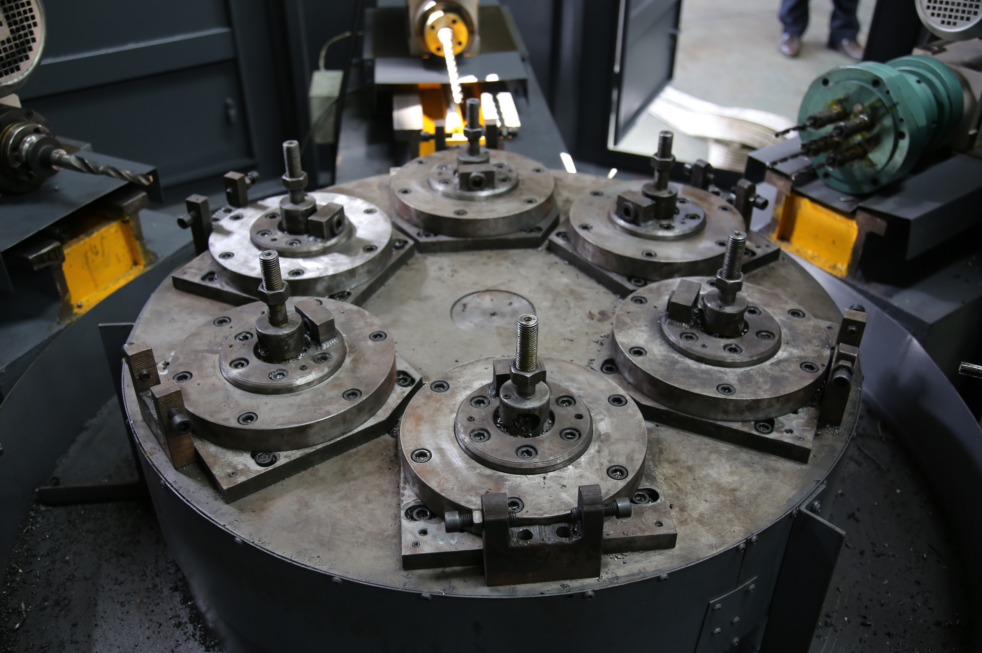

I-Working Table yakhelwe ngokukhethekile i-workpiece. I-blocking block kanye nephinikhodi yokumisa iyacinywa, ukuze kuqinisekiswe ukuma okuthembekile kwe-workpiece. IHydraulic ibambe isiqeshana sokusebenza, ukuze kuthuthukiswe ukusebenza kahle kokucubungula, ukunciphisa umfutho wabasebenzi.

4).Isisetshenziswa samanzi

Isiteshi se-hydraulic samukela i-valve ye-Superposition ezimele, eyakhiwe ngevalvu yekhwalithi ephezulu kagesi, i-valve elawula ukucindezela, i-throttle valve kanye nepompo ye-vane ephindwe kabili. Futhi ifakwe idivayisi yokupholisa umoya ukuze kuqinisekiswe ukuthi isiteshi se-hydraulic sinezinga lokushisa elivamile likawoyela uma sisebenza.

5)Ikhabethe likagesi

Ikhabhinethi kagesi izimele futhi ivaliwe.Ifakwe nesilawuli se-CNC, i-Inverter nezingxenye zikagesi.Futhi setha idivayisi yokupholisa umoya ukuze uqiniseke ukuthi izingxenye zikagesi zomshini zisebenza kahle, alukho uthuli.

6)Idivayisi yokugcoba emaphakathi

Uhlelo Lokugcoba olufakwe idivayisi yokugcoba eqhubekayo ye-Nanjing Beiqier, lumpompa uwoyela wokugcoba ezingxenyeni ezihambayo njalo. Gwema ukusebenza okwenziwa ngesandla okuyisicefe, thuthukisa impilo yesevisi yamathuluzi omshini.
I-chip yokupholisa isusa idivayisi

7) Lo mshini uthatha ukupholisa okunamandla okugeleza, Izinsimbi zensimbi zigezwa ngamanzi apholisayo ukuze zigeleze kudivayisi yokukhipha i-chip ngokusebenzisa i-chip ekhipha umlomo womzimba womshini.Ama-chips agcinwa ebhokisini elilodwa ukuqinisekisa ukuhlanzeka kwethuluzi lomshini futhi anciphise. umfutho wokusebenza
8).I-Multifunction CNC Controller

Lo mkhiqizo uyidivayisi yekhwalithi ephezulu ye-CNC enawo wonke amabhasi edijithali.Ihlala ihambisana nesilawuli se-CNC sezinga eliphezulu phesheya, ithatha ukwakheka komshini ongaphezulu naphansi usebenzisa i-double CPU module, i-modular ne-open architecture, esekelwe kubuchwepheshe be-NCUC industrial fieldbus enobuhlakani obuzimele. amalungelo empahla. Inemisebenzi yobuchwepheshe bokulawula iziteshi eziningi, i-axis machining emihlanu, isivinini esikhulu nokunemba okuphezulu, inhlanganisela yokugaya nokulawula okuhambisanayo, kusetshenziswa isikrini se-LCD se-15 'LED. Isetshenziswa kakhulu ngesivinini esikhulu, ukunemba okuphezulu, i-axis eminingi, iziteshi eziningi eziqondile, isikhungo semishini esivundlile, inhlanganisela yokugaya, amathuluzi omshini we-axis gantry angu-5, njll.
